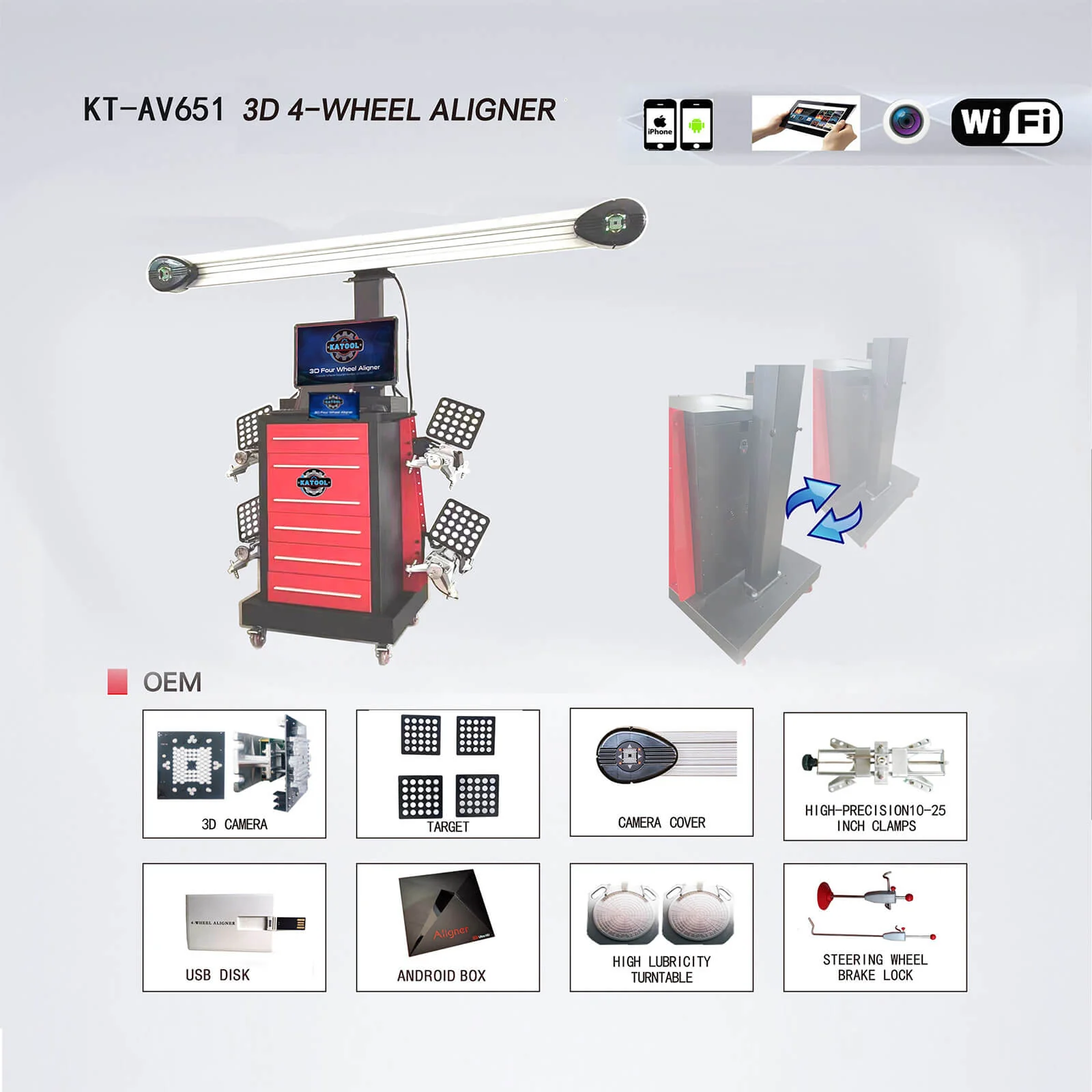

Katool AV651 3D Wheel Alignment Machine with Cabinet

This precision tool is designed to elevate your automotive workshop, providing accurate and efficient wheel alignments. The AV651 is equipped with advanced features, ensuring optimal vehicle performance and customer satisfaction. Its versatility allows it to seamlessly integrate with various lift configurations, making it a valuable asset for any professional garage. Experience the future of wheel alignment technology with the AV651, where adaptability meets precision, transforming the way you approach vehicle alignments on diverse lift systems.

Specifications



Dimension(LxWxH)
Net weight	440.92 lbs
Power Supply	100-240V,50/60 HZ,1 Ph
Working Temperature	41F…104 F(+5℃…+40℃)
Cameras (Total)	2
Tire Diameter	9 27/32-31 1/2 in(250-800 mm)
Wheelbase	62 63/64 -82 43/64 in(1.6-2.1m)
Track Width	70 55/64-177 11/64 in(1.8 -4.5 m)
Warranty	1-Year Limited

Feature

• Mobile 3D Wheel Aligner for Lift Application.
• Unlimited memory for vehicle specifications.
• No calibration during installation.

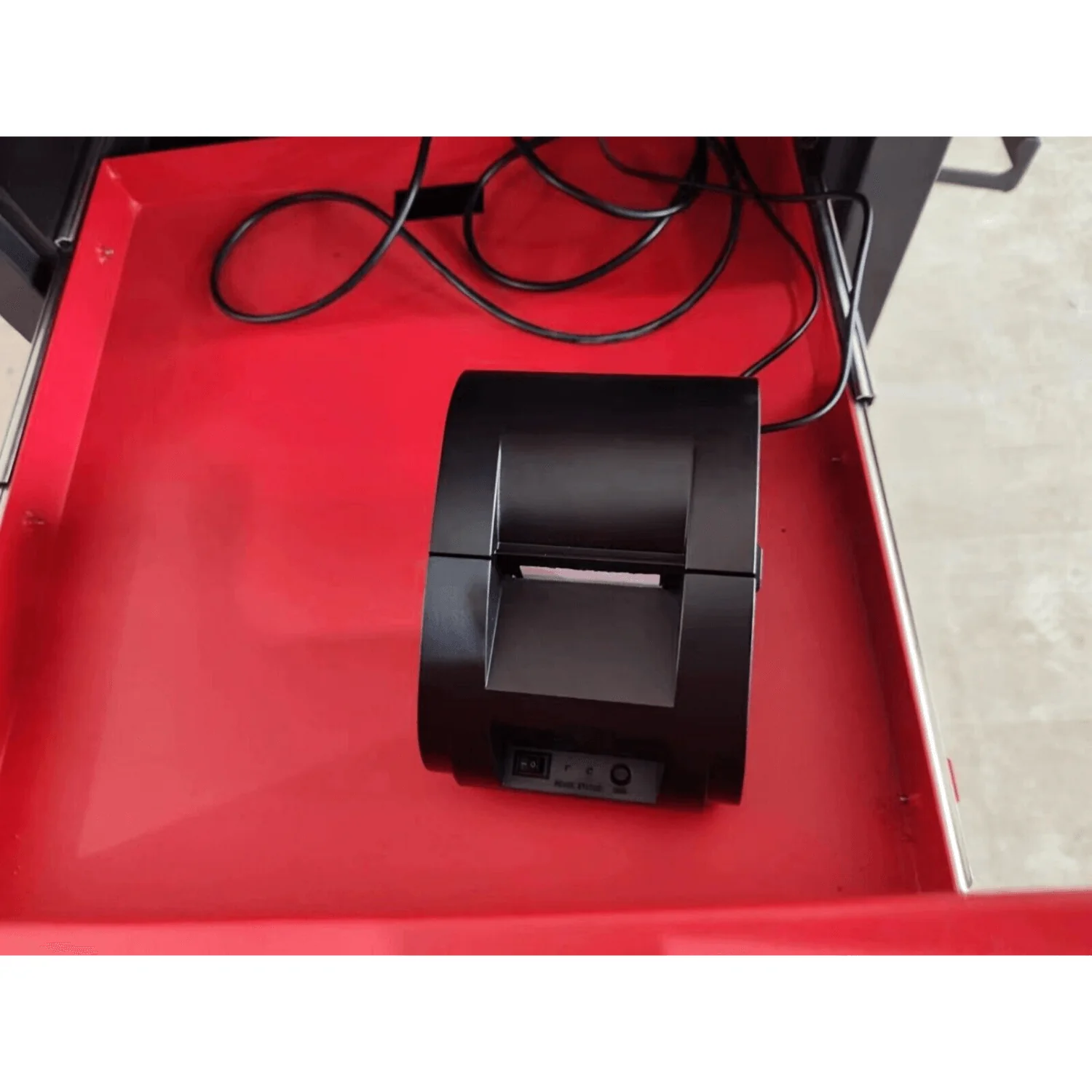

• Includes tablet and a 30-inch display screen, mouse and keypad, and a printer.
• Complementary wifi device and USB drive.
• Uses Android and IOS systems for the software, minimizes the need for software and system maintenance.
• Synchronous Display on Smart Phone and Pad.
• The client can read the alignment operation on the smart device during the service.
• During rear wheel adjustment, the engineer can check data changes on a smartphone easily.
• The post moves manually.
• Free database upgrades yearly.
• The database keeps up with the most recent car models from all US, European and Asian brands.

Package Size

• LxWxH (inch): 29.92x48.03x47.24    110.24x12.6x15.75
• Weight (lb): 529.11
• A forklift or equivalent is required for unloading
