Katool KT-B700 Max 30" Rim Wheel Balancer

Introducing the KT-B700 Wheel Balancer, the ultimate solution for precision wheel balancing on wheels smaller than 30 inches in diameter. This cutting-edge balancer combines advanced technology with user-friendly features, ensuring a smooth and vibration-free ride. With its compact design, the KT-B700 is perfect for garages and workshops with limited space. The intuitive interface and quick calibration make it easy for professionals and enthusiasts alike to achieve optimal balance effortlessly. Trust in its accuracy and efficiency to enhance vehicle performance and prolong tire life.
User Manual

Specifications



Dimension(LxWxH)
Net weight	231 lbs
Rim Diameter	<30"
Wheel Width	3"-12"
Wheel Diameter	<880mm/34.64"
Balancing Speed	180rpm
Power Supply	110V 1PH
Motor Power	0.25KW
Rim Center Hole Dia	<135mm/5.31"
Wheel Weight	<65KG/143lbs
Balancing Accuracy	±1g
Measuring Time	7S

Feature

• The body uses 3mm-thick steel with high strength, solid welding, and low vibration.
• In the all-in-one pressure sensor support design, both the bottom and sideboards are 8mm thick, and it ensures that the sensor works stably with high precision.
• Top-level motor and pure copper winding provide more power, faster heat dissipation, lower defect rate and longer use life.
• The 36mm shaft thread is made by quenching treatment to offer high strength.
• The computer board adopts advanced welding technology to make it moisture-proof, dust-proof, and antistatic.
• Various balance modes for different types of rims to provide more precision.
• Built-in fault diagnosis and self-calibration program with double-side calibration. There are no preset parameters so the users can operate with ease
• Unit selection (Ounce/Gram, MM/Inch).
• High-quality integration power board, working stable, and reliable.
• Optional wheel guard.

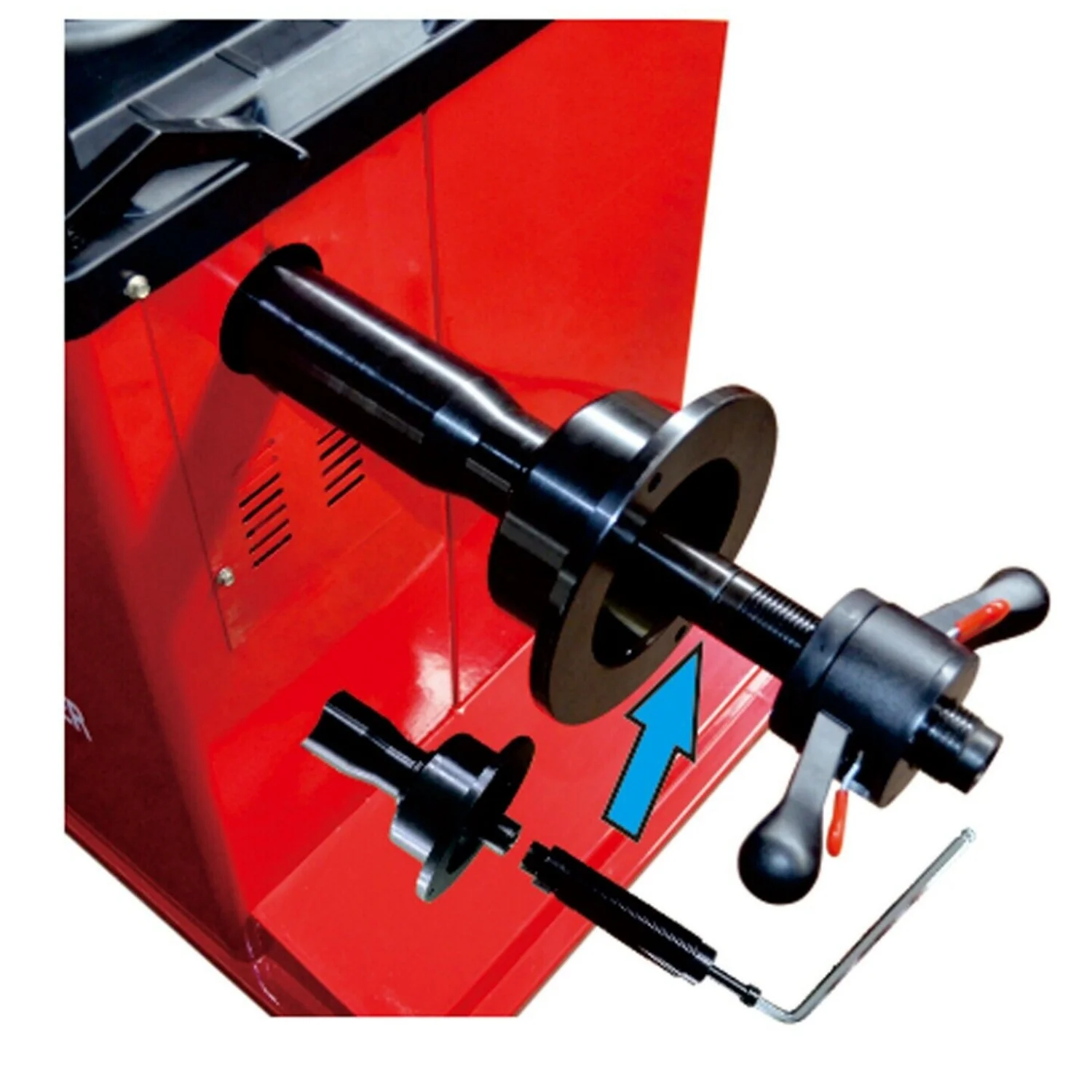

• Longer shafts are also compatible with wider wheels.

Package Size

• LxWxH (inch): 39.5"x29.5"x35"
• Weight (lb): 231
• A forklift or equivalent is required for unloading
