Greatbear Rock Grapple Bucket
This Greatbear rock grapple bucket with tines is designed to sift or rake material on your job site. The gap between tines allows the loose soil off the bucket and keeps the bigger rocks inside, so you can move the rocks aside. The easiest and cleanest way to clear rock on your construction site is to use this Greatbear rock grapple bucket. This attachment can easily rip into the earth and lift, filtering out the soil and retaining the rock.
Specification
| Product Width | 75.98'' |
| Product Length | 40.31'' |
| Product Height | 28.42'' |
| Working Width | 72'' |
| Grapple Widths | 20" (I.D.) |
| Operating pressure | 17-21 Mpa |
| Working capacity | 0.5 m3 |
| Opening distance | 41.73'' |
| Weight | 692.25 lbs |
| Hydraulic cylinder stroke | 6.50'' |
| Hydraulic installation distance | 17'' |
| Max lifting capacity | 2000 lbs |
| Gripping force | 3000psi |
Features
- Connection: Universal Skid Steer Hookup
- Surface: Durable Powder Coated finish
Package Size
- LxWxH (inch): 76x44x30
- Weight (lb): 827
- Forklift or equivalent is required for unloading

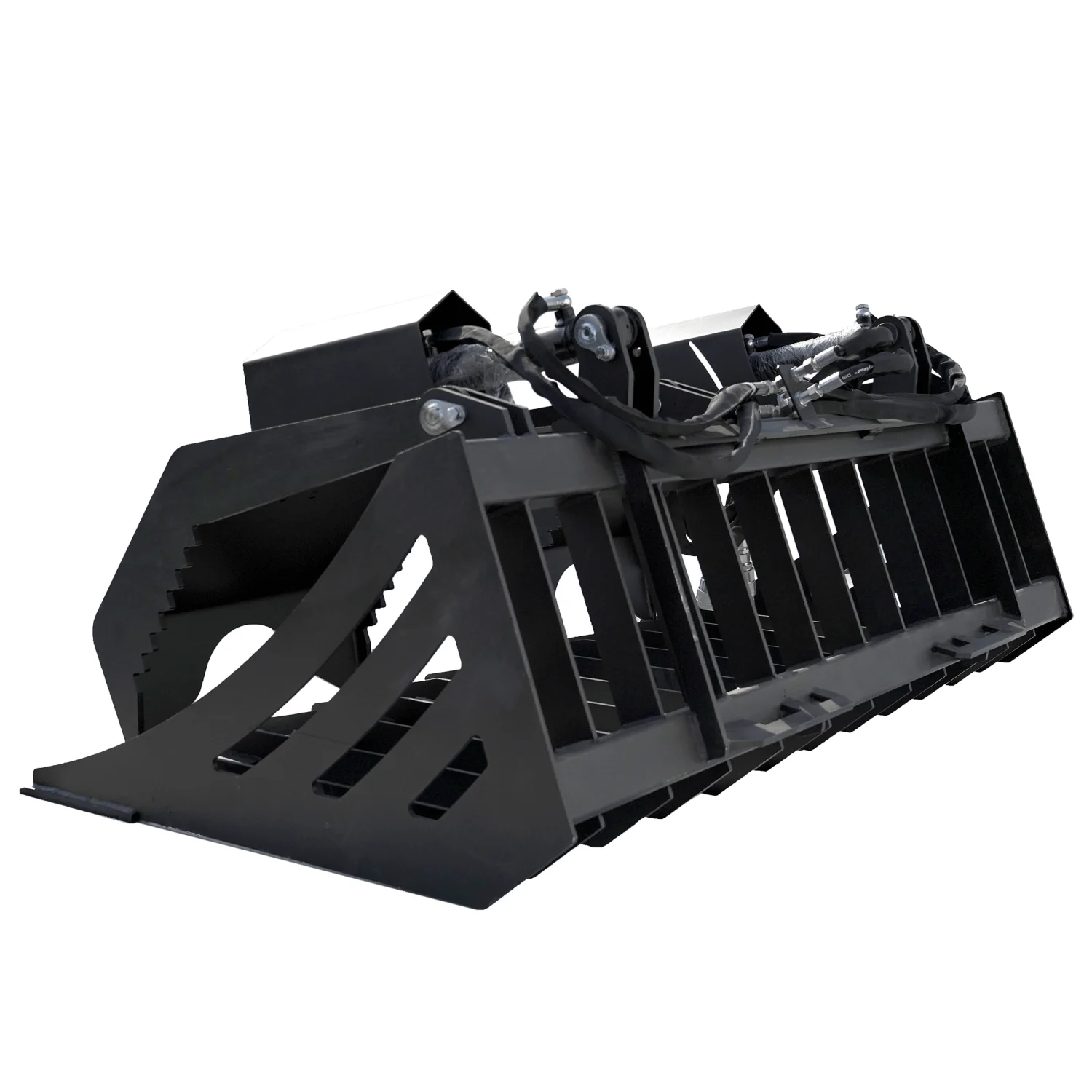

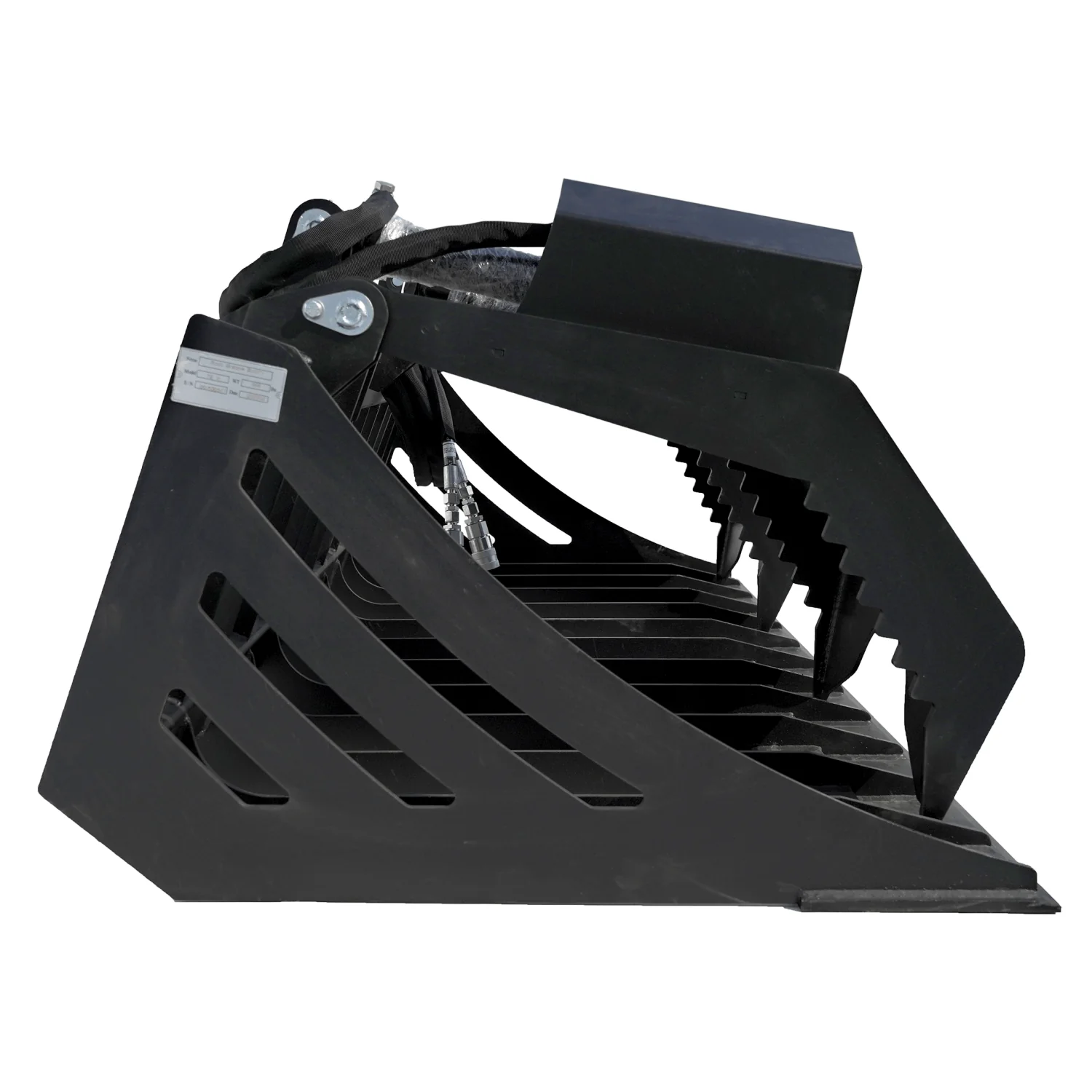

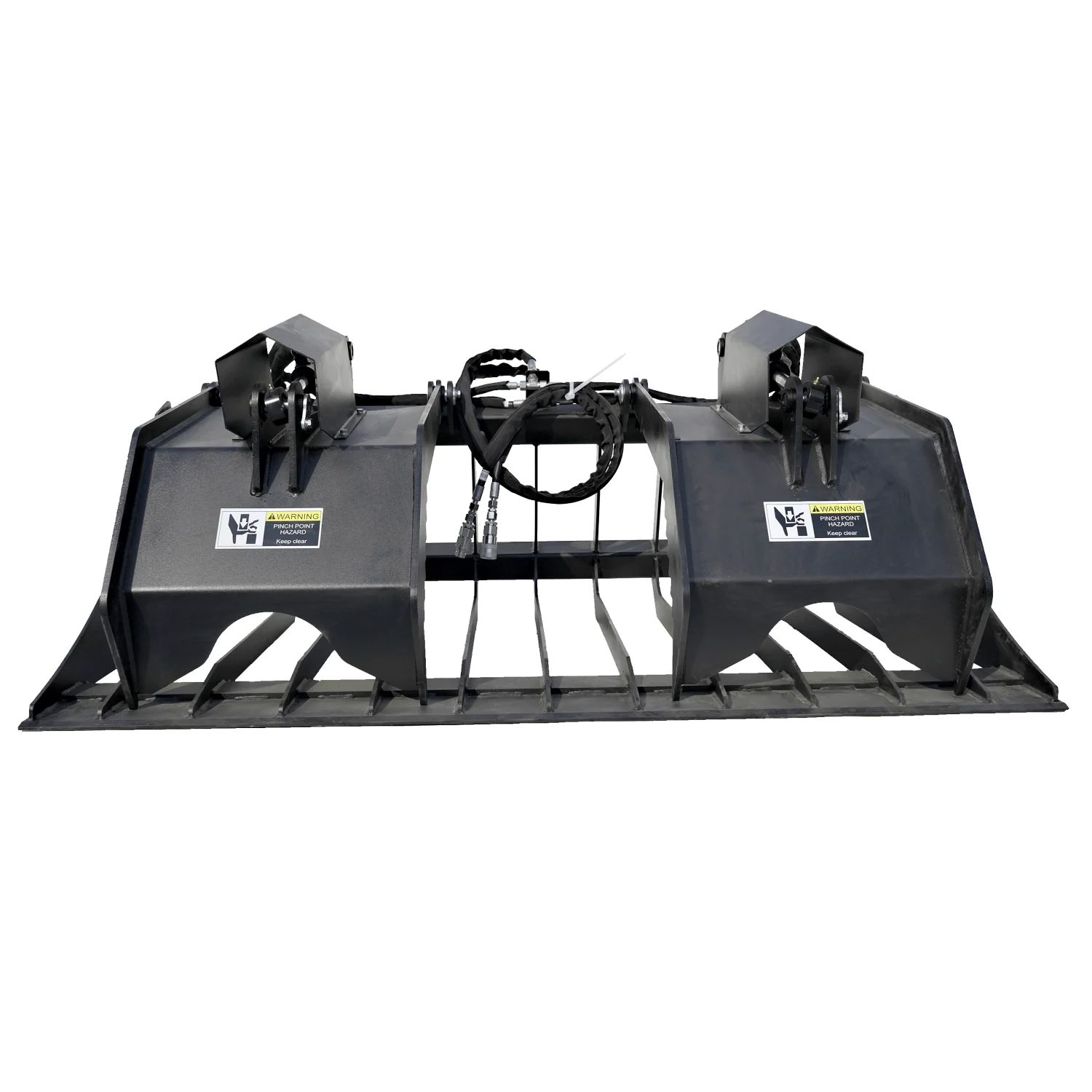

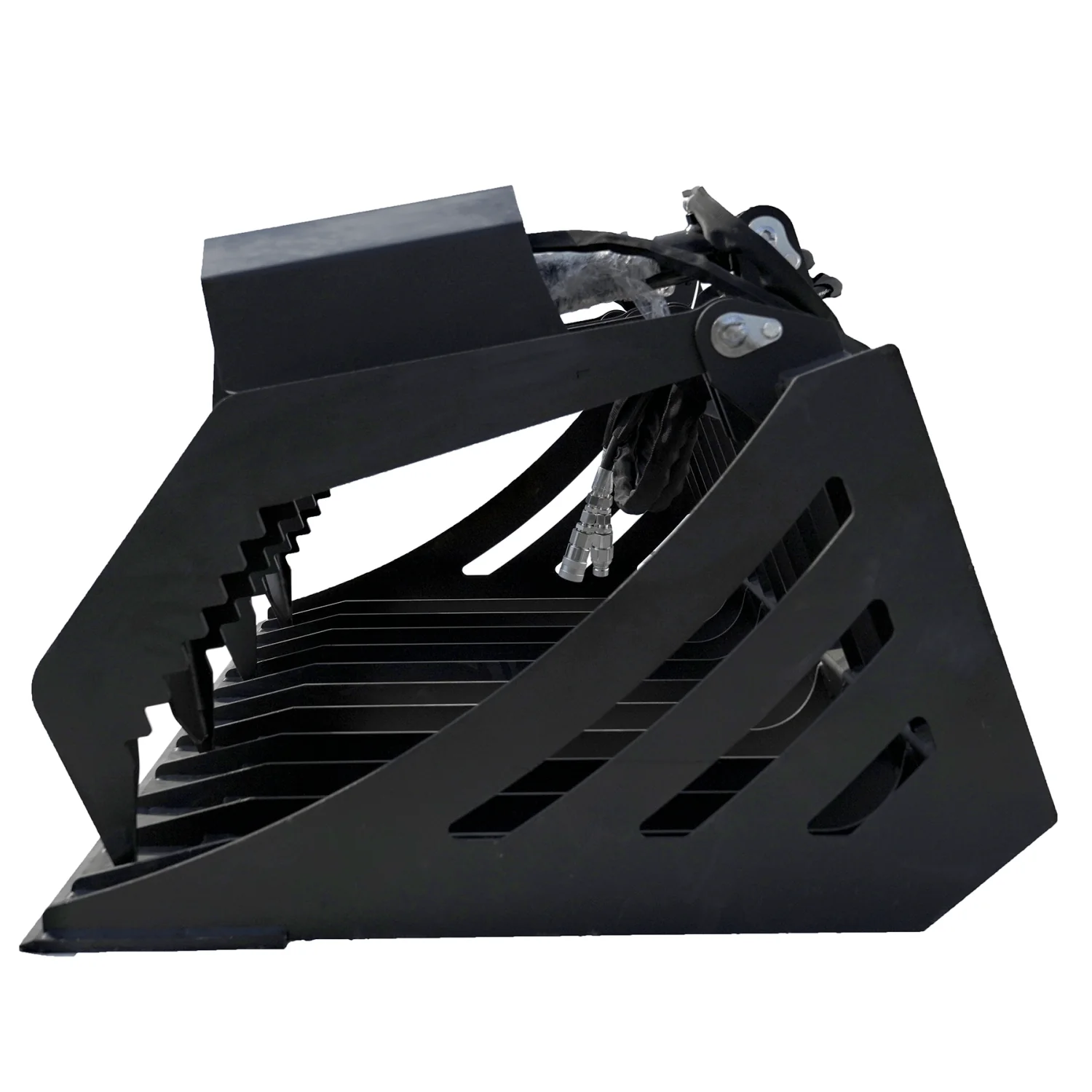

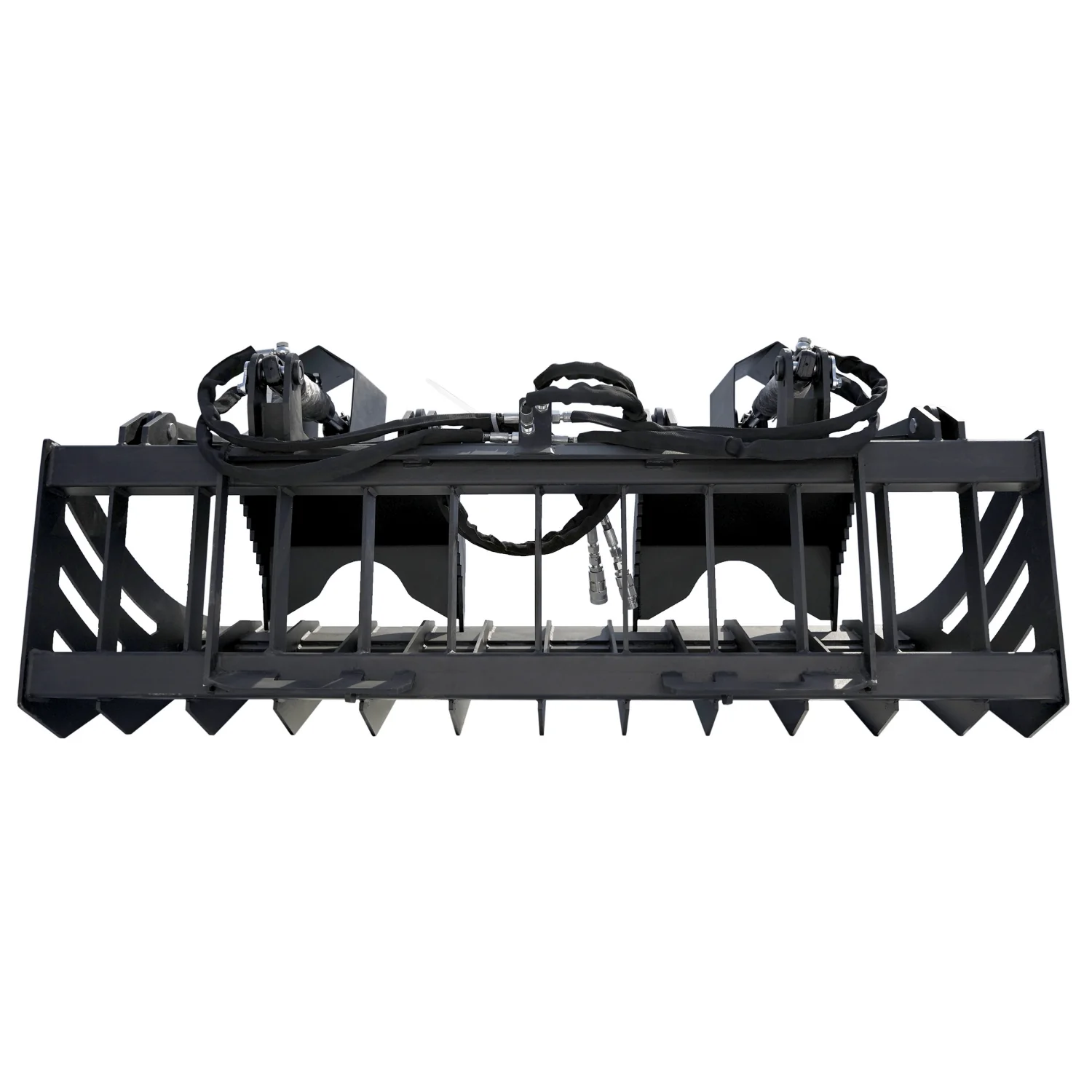

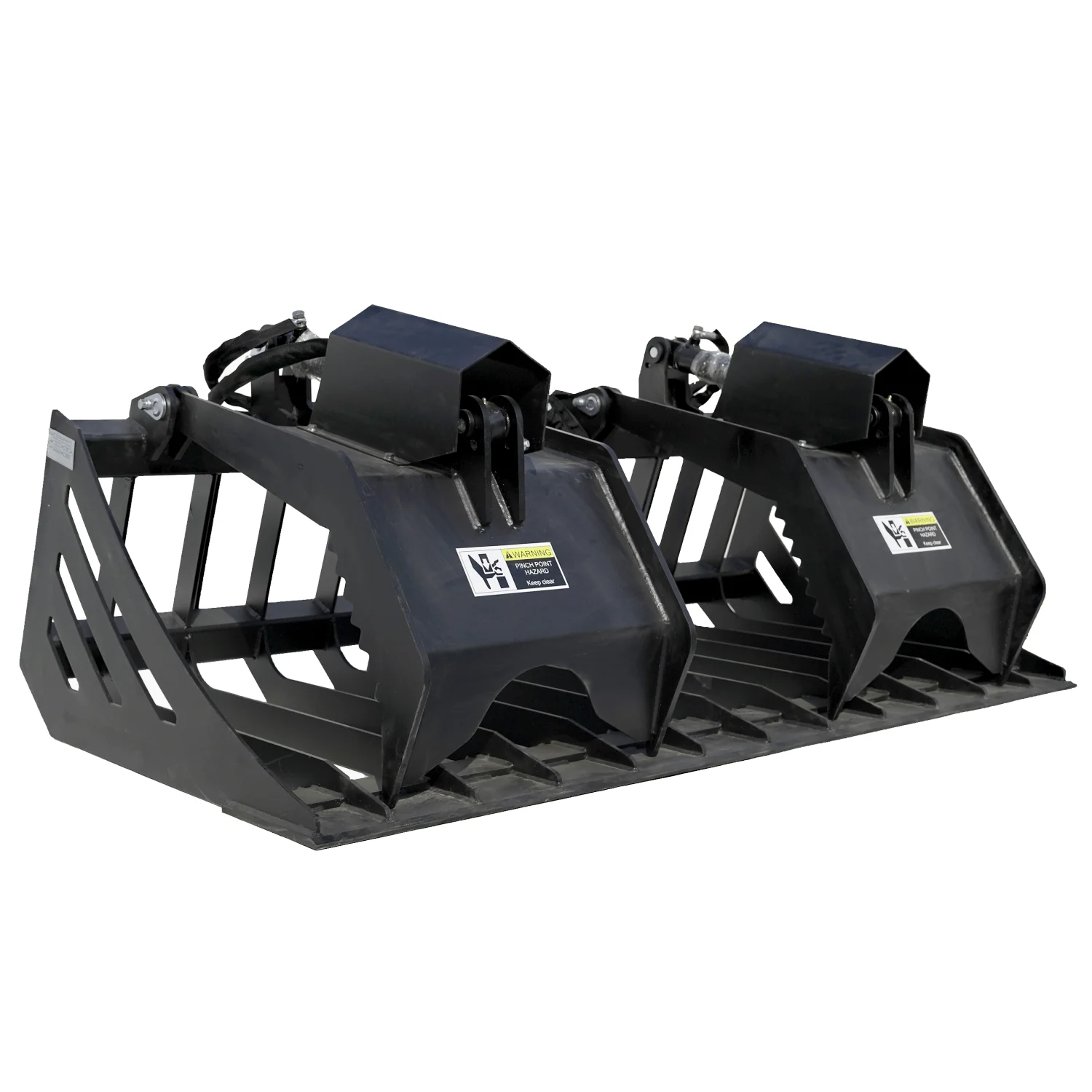

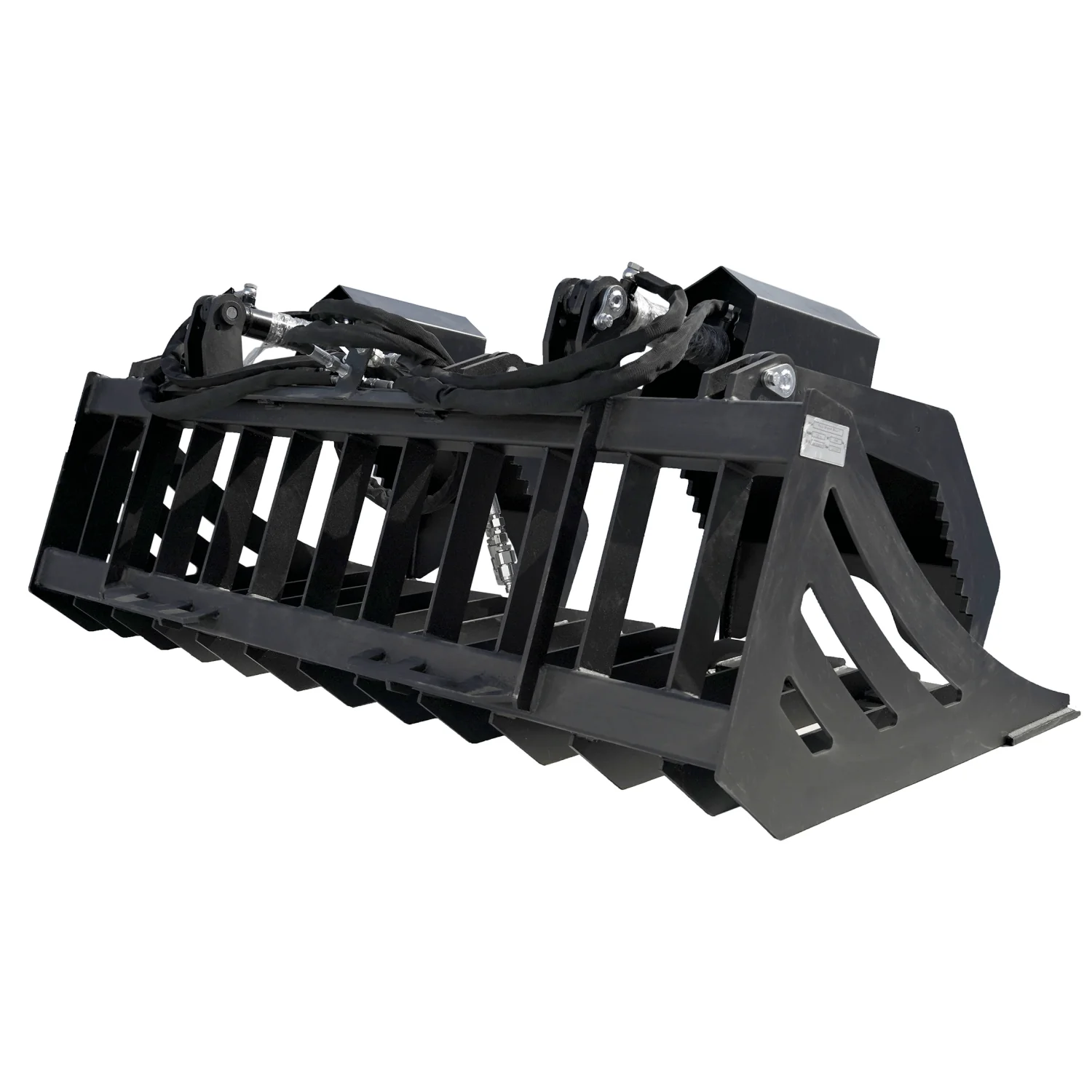

More Images
